- Size: 180CBM
- Place of Origin: Linyi
- Brand Name: lishide
- Model Number: SC400.8
- Weight: 40000.000 kg

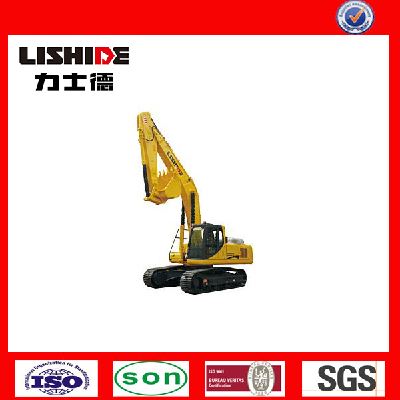

LISHIDE SC400.8 Excavator For Sale
LISHIDE SC400.8LC excavator developed based on so many years experience of manufacturing large excavators, and it is designed for working at mines and other adverse conditions.
Power System
It adopts 45T excavator engine with strong power up to 216KW, little emission and excellent economy fuel. And it is of energy saving and environmental protection.
Hydraulic System
The main pump matching with the engine can achieve excellent condition. Varies of power selection model according to different work load. Fulfill the functions of automatic idle speed and power increase.
The enlarged pass diameter of the hydraulic system greatly reduces the loss of hydraulic energy and fuel consumption.
Working Device
The bucket digging force is increased by 23% for the enlarged diameter of the oil cylinder. The digging resistance reduced and the work efficiency increased for the use of new bucket. The operation stability improved by using high body and high strength steel plate welding. Thus the crawler plate of high strength steel material can withstand the impact from the external rough ground. The work environment is comfortable, safe, and the cab is sealing better. Moreover the driving seat angle can adjust greater.
The product listing to further consolidate and enhance the company's large excavators in the market, to meet the various needs of the customers and enhance the competitiveness of the company.
| Model | SC400.8LC |
| Technical Parameter | |
| Operating weight(T) | 39.8 |
| Bucket capacity(m³） | 1.9 |
| Engine model | CUMMINS QSM11 |
| Rated power(km/r/min) | 216/2100 |
| Fuel tank capacity(L) | 650 |
| Travel speed(km/h) | 4.8/2.7 |
| Swing speed (r/min) | 7.6 |
| Max. climbing degree(%) | 70 |
| Bucket digging force(KN) | 256 |
| Average grounding pressure(KPA) | 70 |
| Hydraulic pump model | M5V180DT-H |
| Max. flow（L/min) | 320x2 |
| Working pressure(MPA) | 34.3 |
| Hydraulic oil tank capacity(L) | 335 |
| O-Max. digging height(mm) | 10110 |
| P-Max. dumping height(mm) | 7060 |
| Q-Max. digging depth(mm) | 7025 |
| R-Max. vertical wall digging depth(mm) | 5430 |
| T-Max. digging reach | 10750 |
| V-Min. swing radius(mm) | 4580 |
